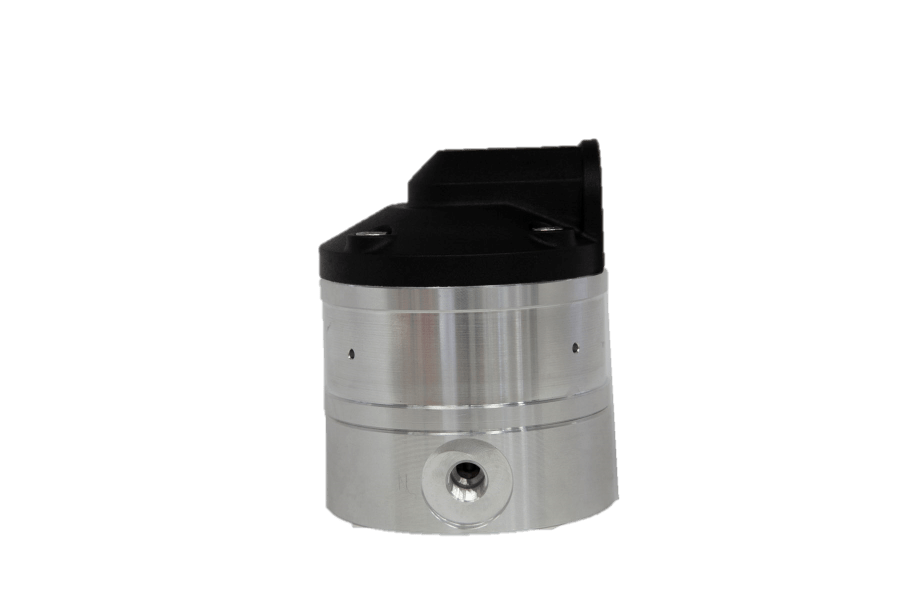

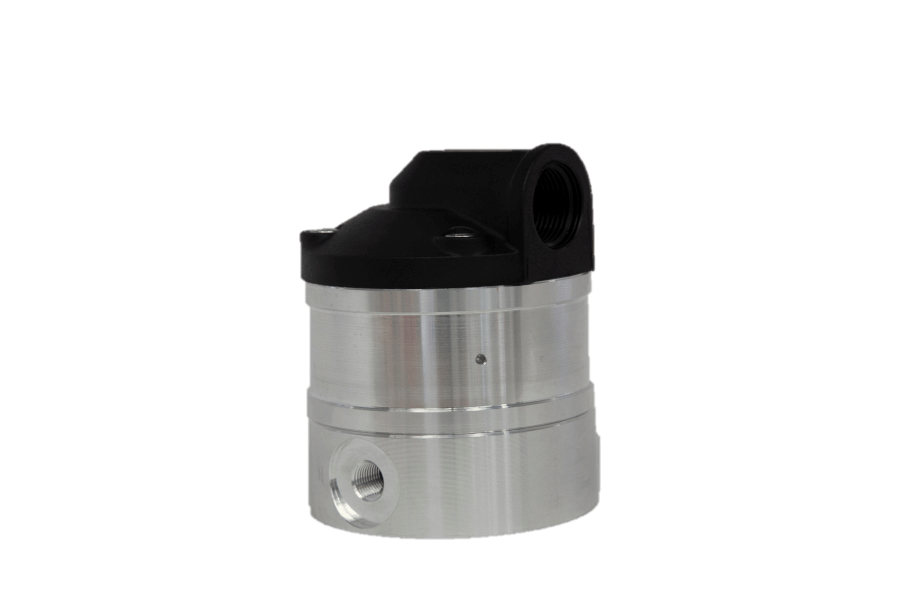

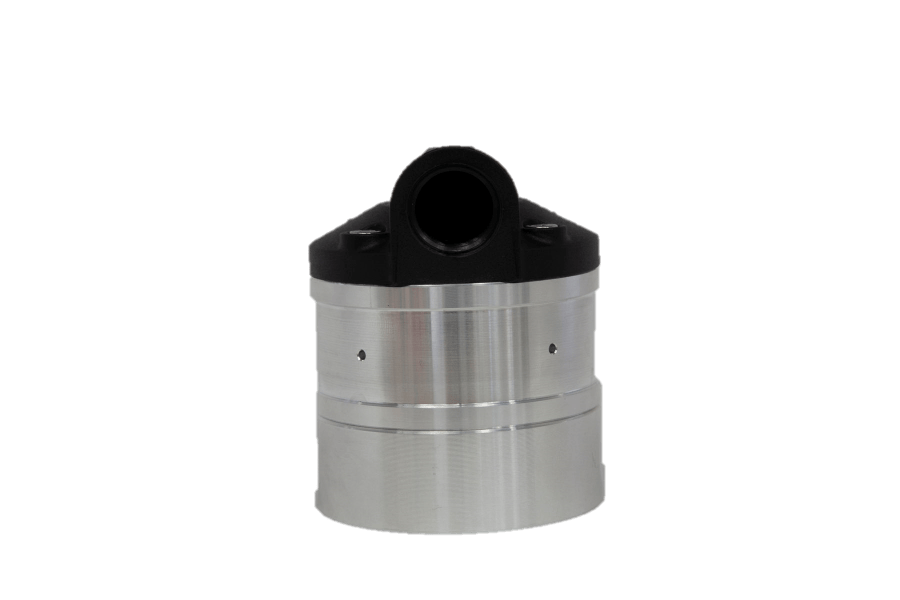

OM Series Flowmeter - OM004A513-211

OM Series Flowmeter - OM004A513-211

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM004A513-211 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs.
Product comes calibrated with standard calibration certificate.

Specifications

Series: OM Oval Gear

Model: 1/8"

Body Material: Aluminium Body

Rotor Material: Stainless steel Rotors with Carbon Ceramic Bearings

O-Ring Material: Teflon encapsulated viton O-Rings

Temperature Limits: 120°C

Process Connections: BSPP (G) female threaded

Cable Entries: M20 x 1.5mm

Integral Options: Pulse Out
