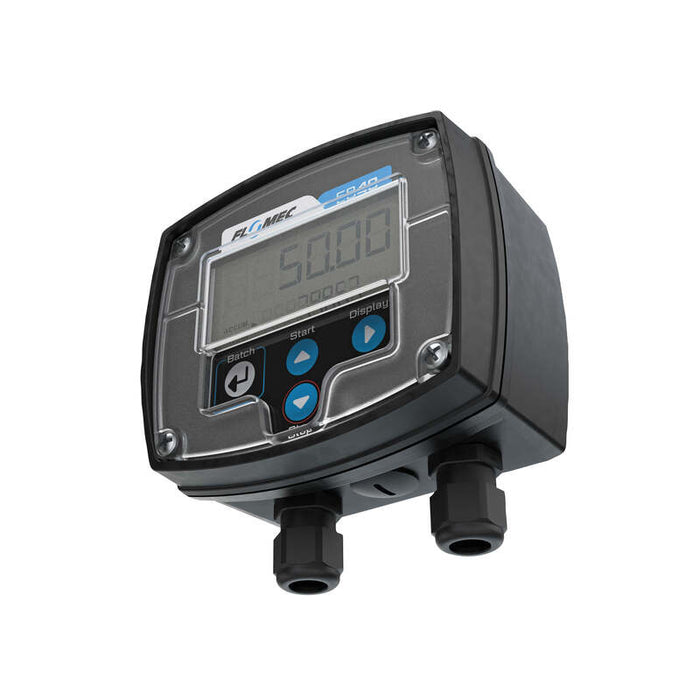

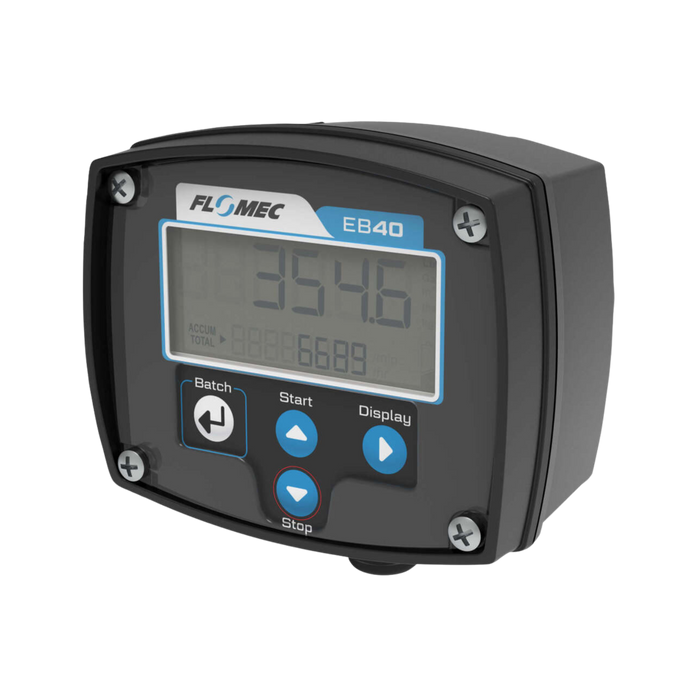

EB40 Batch Controller

**PRE-ORDER ONLY** EB40 BATCH CONTROLLER AVAILABLE FROM 1 FEB, 2026

SKU EB406D0FM

Rp 5.911.000,00 - Rp 9.272.000,00

Rp 5.911.000,00

Rp 5.911.000,00 - Rp 9.272.000,00

Rp 5.911.000,00

The EB40 single-stage batch controller combines user-friendly installation and operation with rugged durability, making it the perfect solution for a wide range of applications.

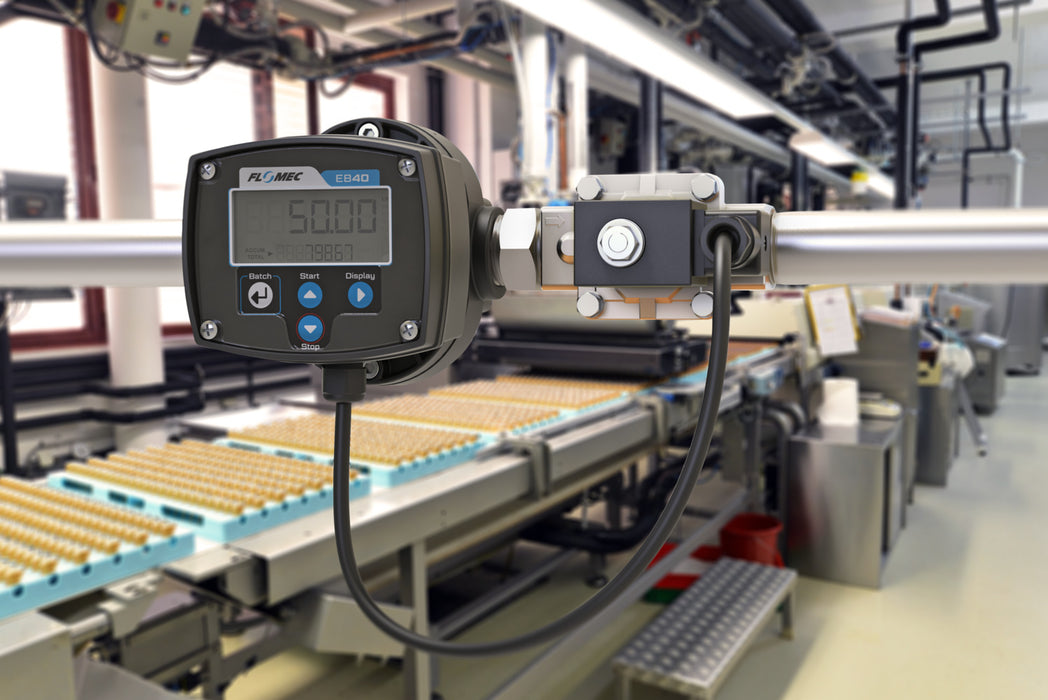

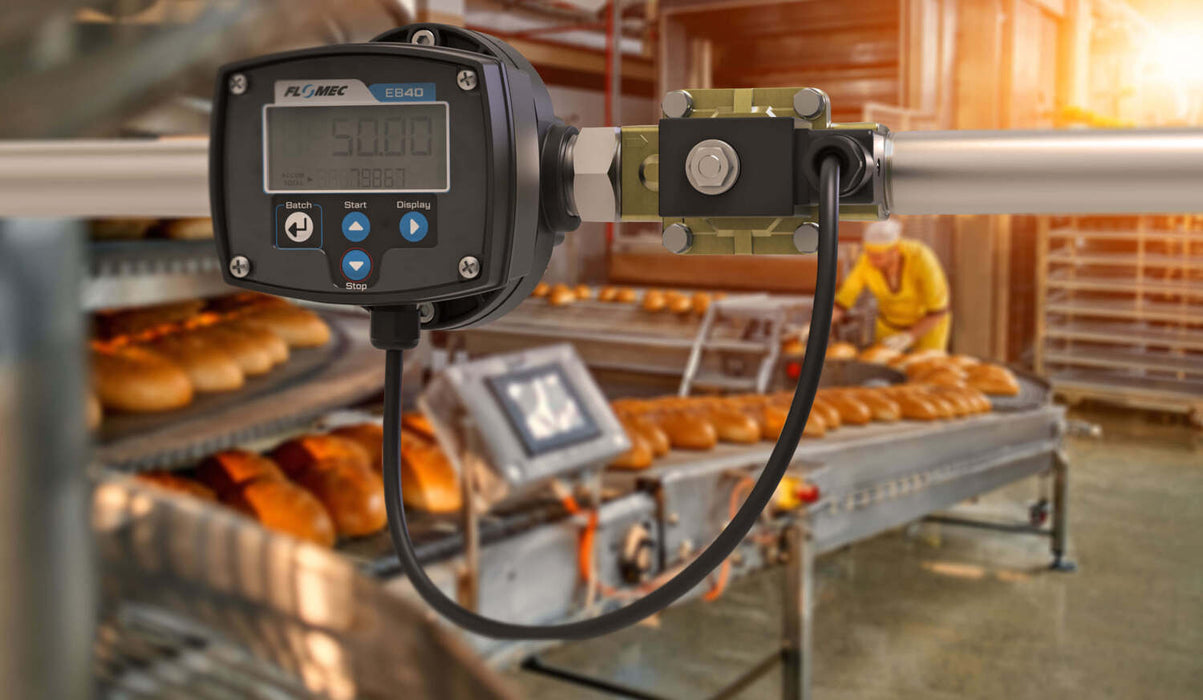

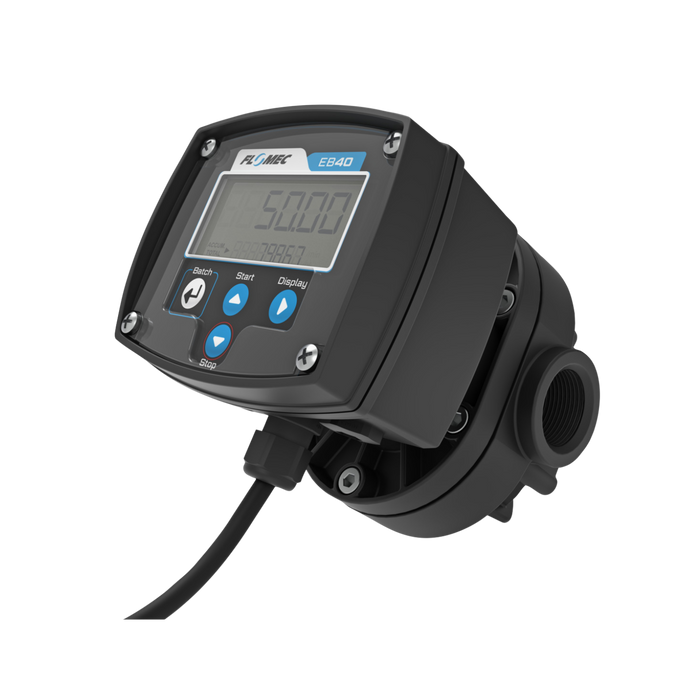

Just pair it with a Flomec meter for precise and efficient control of your process resulting in consistent product every time. Take control with our intuitive 4-button interface.

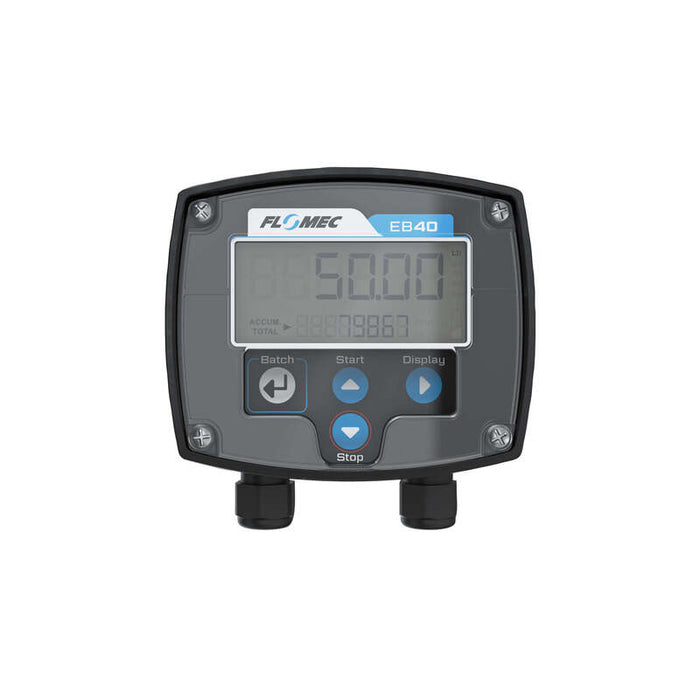

Easily program your desired batch volume and let the controller do the rest. The bright, backlit 6-digit display provides clear visibility, even in challenging
environments.

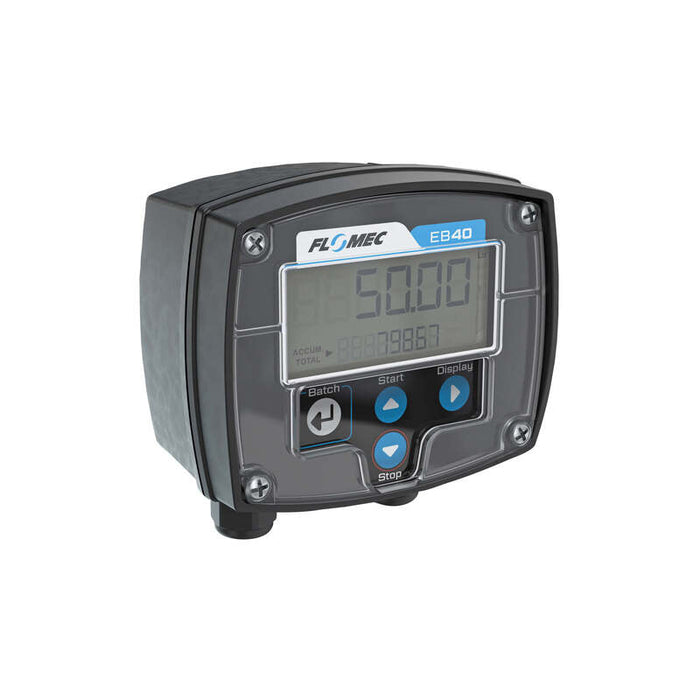

With a weather-resistant IP66/67 and NEMA4X enclosure, you can trust the EB40 Batch controller to perform reliably, indoors or out. Retain your settings, ensuring consistent operation even after a power loss.

Upgrade your batching process today and experience the difference!

Features

Store up to 10 frequently used recipes for quick and easy recall
Non-linear correction for accurate measurements across a wide flow range
Weather-resistant and durable IP66/67 - NEMA4X enclosure
Prevent costly overruns with built-in limits and overrun correction
Retained settings after power loss
Enhance safety with an optional interlock that prevents operation without a receiving vessel
Built-in diagnostics simplify installation and troubleshooting
FLOMEC CDS software compatible for simple and intuitive programming

Specifications

Instrument Type: Batch Controller

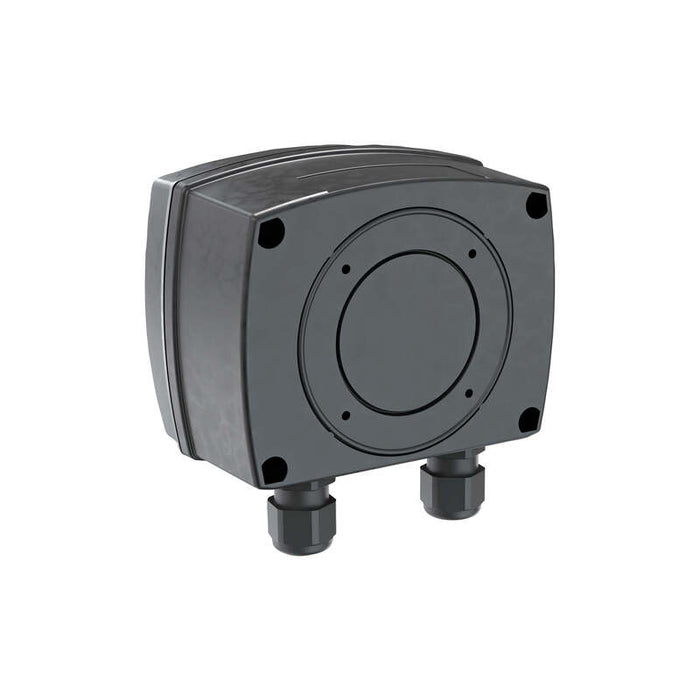

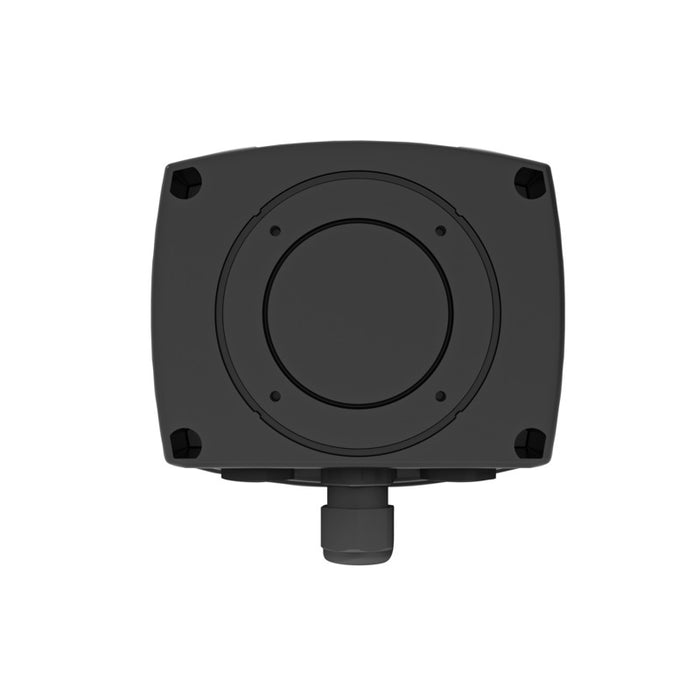

Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
Operating Temperature Range: -30°C - 80°C
Engineering Units: Litres, Cubic Metres, US Gallons, Imperial Gallons, Millilitres (Cubic Centimetres), Quarts, Fluid Ounces, Cubic Feet, Barrels, Kilograms, Pounds, or Custom.

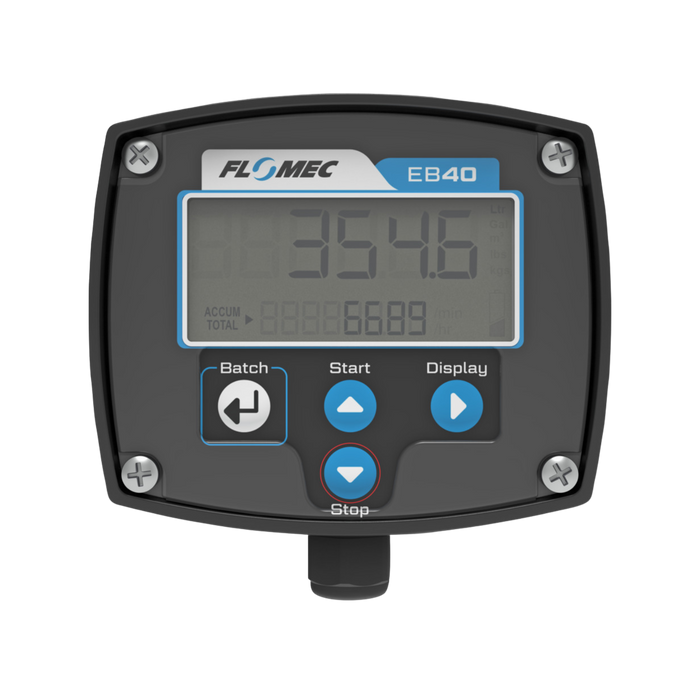

Display & Totals: Large dual line LCD with 6 characters 17mm high on top line, 8 characters 7mm high on bottom line. Backlit (external power)
Control Option: Single Stage
Input Types & Frequency: Reed Switch – (120Hz), NPN (hall effect sensor) – (2kHz), Variable Reluctance Coils (Turbine Flowmeters) – (2kHz), Weigand Sensors (voltage pulse signals) – (2kHz), Coil (15mV pk-pk min.)
Control Outputs: NPN (open collector, sinking) output, 30Vdc / 1A maximum
Enclosure: Glass reinforced Nylon (PA6) with a Polycarbonate lens, Santoprene gasket, polyester decal. Enclosure provides an IP rating of IP65 Optional powder coated Aluminium enclosure
Power Requirements: Regulated 12V ~ 30V DC

Applications

Sauce Manufacturing: Ensure consistent flavor and texture in sauces, dressings, and condiments by accurately controlling the addition of liquids.
Microbreweries: Add exact strike water volumes every time for consistent
Wine and Spirits Production: Accurately measure and blend different liquids during the winemaking or distilling process.

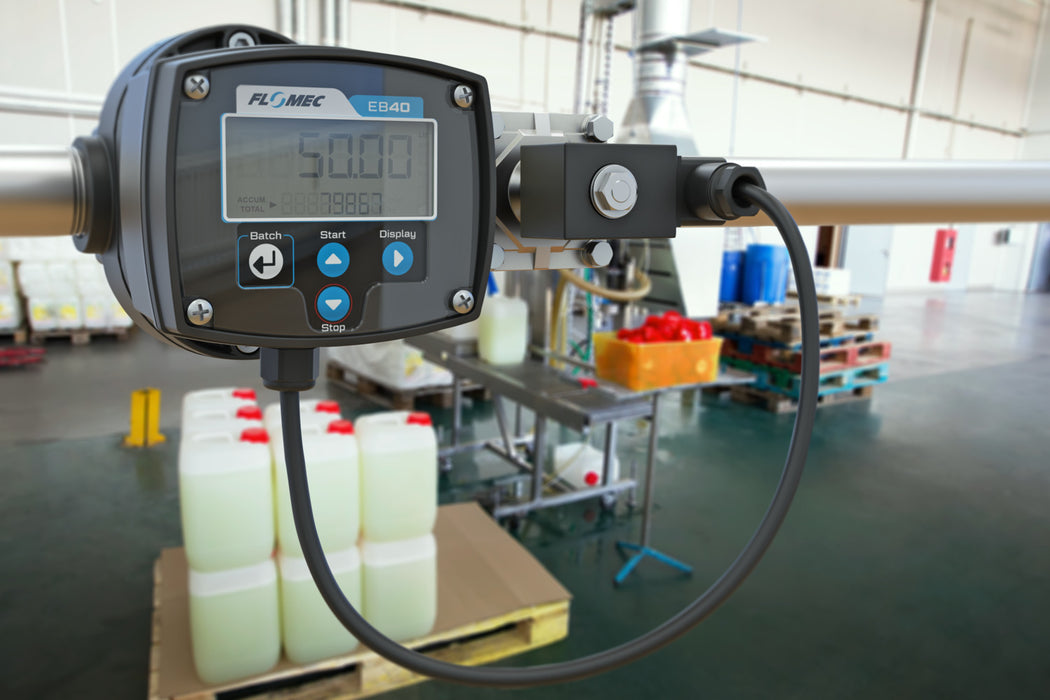

Chemical Mixing: Accurately measure, blend and dilute chemicals for the production of cleaning agents, fertilizers, and other chemical products.
Cosmetic Production: Control the precise addition of liquids in the manufacturing of lotions, creams, and perfumes.
Water Treatment: Control the addition of chemicals for water purification and treatment processes.
Fuel Dispensing: Accurately measure and dispense fuels at fuel depots.
Agriculture: Control the dosage and application of liquid herbicides and pesticides in agricultural settings.
Aquaculture: Accurately dispense medications and nutrients in fish farms and aquaculture facilities.
Wastewater Treatment: Control the addition of chemicals in wastewater treatment processes including PAC dilution, reducing waste and increasing effectivity.
Building Industry: Dilution and addition of cement additives, and dedusting agents.

Quantity

FREQUENTLY ASKED QUESTIONS

Do I need single or dual stage batch control?

The EB40 is suitable for single stage operation. For dual stage operation use the EB11 or F130. Single stage operation is suitable for line sizes up to 40 mm or for larger slower acting valves. Hydraulic shock or water hammer may cause flow meter damage if a larger valve closes too fast.

Do I need power for the batch controller?

10-30Vdc power will be required as the EB40 has either a solid state or mechanical relay to control a valve.

Can I use the EB40 Batch Controller with remote start/stop/reset buttons?

Yes, the EB40 Batch Controller has remote relays so that an operator can start and stop a batch and rest it if required. It also has an interlock that will prevent the EB40 from measuring until a vessel is in place when used with a proximity sensor.

How do I choose that right solenoid for my system?

The choice of solenoid depends on a variety of specifications. The voltage, the pipe size, the pressure in the line, the chemical compatibility, the close rate and whether the valve is normally open or normally closed. The power rating is important to determine whether a mechanical relay is required between the EB11 and the solenoid, the maximum rating for a solenoid that can be wired directly to the output of the EB11 is 7.2 watts at 24v DC. See our See our EB11 Design Guide for more information on solenoid selection.

Can I pause the batch?

The batch volume can be paused and restarted at any time with the touch of a button.

Can I set multiple batch totals?

The EB40 Batch Controller has a ten batch volume storage, that can be easily selected. The volumes can be programmed with the CDS software from any Windows computer.

Can I use the EB40 to start and stop a pump?

The EB40 Batch Controller can be used to turn on and off a pump using the mechanical relay installed inside. The more accepted and accurate method is to use an automatic valve to shut off flow. This method has a faster response and gives more repeatable batch volumes.

Can the EB40 be used in areas containing flammable liquids such as unleaded petrol or alcohol?

No. The EB40 Batch Controller can only be used in areas where there is no risk of igniting an explosive gas or dust atmosphere e.g. petrol, solvents, alcohols. Consider the F130 Intrinsically Safe Batch Controller for such applications.
